Casa /Produtos/Anéis coletores atuais altos/Engineering Plastics Conductive Slip Ring OD 22mm 360 Degree Unlimited Rotation 4 Wire 5A High Current Electric Slip Ring Rotary Joint Connector

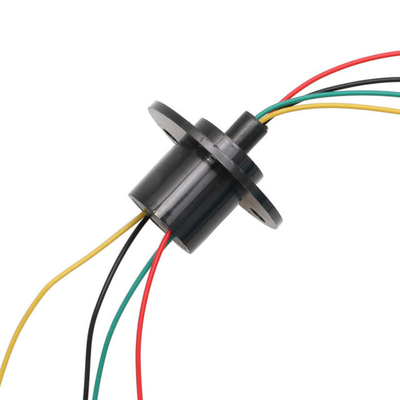

Engineering Plastics Conductive Slip Ring OD 22mm 360 Degree Unlimited Rotation 4 Wire 5A High Current Electric Slip Ring Rotary Joint Connector

1 piece
MOQ
Engineering Plastics Conductive Slip Ring OD 22mm 360 Degree Unlimited Rotation 4 Wire 5A High Current Electric Slip Ring Rotary Joint Connector
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: Dia 22mm 4CH 5A
Type: Electronic Accessories
Product name: Slipring
Material: Engineering plastics
Diameter: 22mm
Channel number: 4CH
Rated voltage: 220VAC/DC
Rated current: 5A
Contact material: Gold/Gold
Working life: ≥5 million rpm
Operating temperature: -20 ℃ ~ +60 ℃
Informação básica
Model Number: Dia 22mm 4CH 5A
Condições de Pagamento e Envio
Descrição de produto
Specification
item
value
Place of Origin
China
Guangdong
Brand Name
Shuaichi
Model Number
Dia 22mm 4CH 5A
Type
Electronic Accessories
Product name
Slipring
Material
Engineering plastics
Diameter
22mm
Channel number
4CH
Rated voltage
220VAC/DC
Rated current
5A
Contact material
Gold/Gold
Working life
≥5 million rpm
Operating temperature
-20 ℃ ~ +60 ℃

360 Degree Unlimited Rotation Conductive Slipring OD 22mm 4 Wire 5A High Current Electric Slip Ring Rotary Joint Connector


Features: - Fully meet the 360 degree of unlimited rotation of the image and data transmission work small noise, long life, small rotation torque, smooth running dynamic resistance change value is extremely low, small volume, compact structure Specifications: - Diameter: 22mm - Channel number: 4CH - Rated current: 5A/channel - Speed: up to 200rpm - Rated voltage: 220VAC/DC - Operating temperature: -20 ℃ ~ +60 ℃ - Contact material: Gold/Gold - Wire length: standard 200mm - Compressive strength: between the two channels≥500V 50Hz - Insulation resistance: 1000MΩ/500VDC - Dynamic resistance fluctuation value: minimum 10mΩ - Shell material: Engineering plastics - Working life: ≥5 million rpm(depending on the working environment and speed) Description: - Wind power slip rings have good resistance to low temperature, high humidity, wind and sand, corrosion resistance, impact resistance, vibration resistance, stable performance and no maintenance. The service life can reach 10 million revolutions. - The slip ring is responsible for the power of the entire system in the wind power generation system. The control signal and data transmission function is a very critical component in the entire wind power system. Its precision, reliability and working life directly affect the performance of the wind power generation system. Package include: 1pcs x slipring
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Western Europe(42.00%),North America(28.00%),Domestic Market(10.00%),Northern Europe(6.00%),Southern Europe(6.00%),Eastern Asia(5.00%),South Asia(3.00%). There are total about null people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
slip ring
