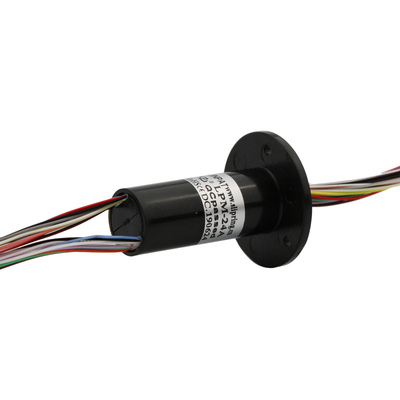

Name: LPC Slip Ring 24 Circuits Long Life 240VAC Low Torque, Capsule Slip Ring Connector LPM-24A
Brand: LPC Slip Ring 24 Circuits Long Life 240VAC Low Torque, Capsule Slip Ring Connector LPM-24A
SKU: LPM-24A
Rating: 4.9 (193 reviews)

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Model Number: LPM-24A

Type: Electronic Accessories

Circuit Number: 24

Working Speed: 0~300 rpm

Current Rating: 1A

Working Temperature: -20~+60â„ƒ

Voltage: 240VAC

Informação básica

Model Number: LPM-24A

Condições de Pagamento e Envio

Descrição de produto

Product Description

Bargain Price Only in Alibaba

Description

The LPM-24A miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPM-24A unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Specification

Circuits	24
Current Rating	1A
Voltage	240VAC
Electrical Noise	≤15mΩ
Working Speed	0~300 RPM
Contact	Precious metal
Wire Size	30# silver plated copper UL, Teflon
Lead Wire Length	Rotor:250mm; Stator:250mm
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

Main Application

Electric devices
Medical facility
Industrial machinery
LED industry
Medical equipment
Process control equipment

Outline Drawing
